Reject Devices

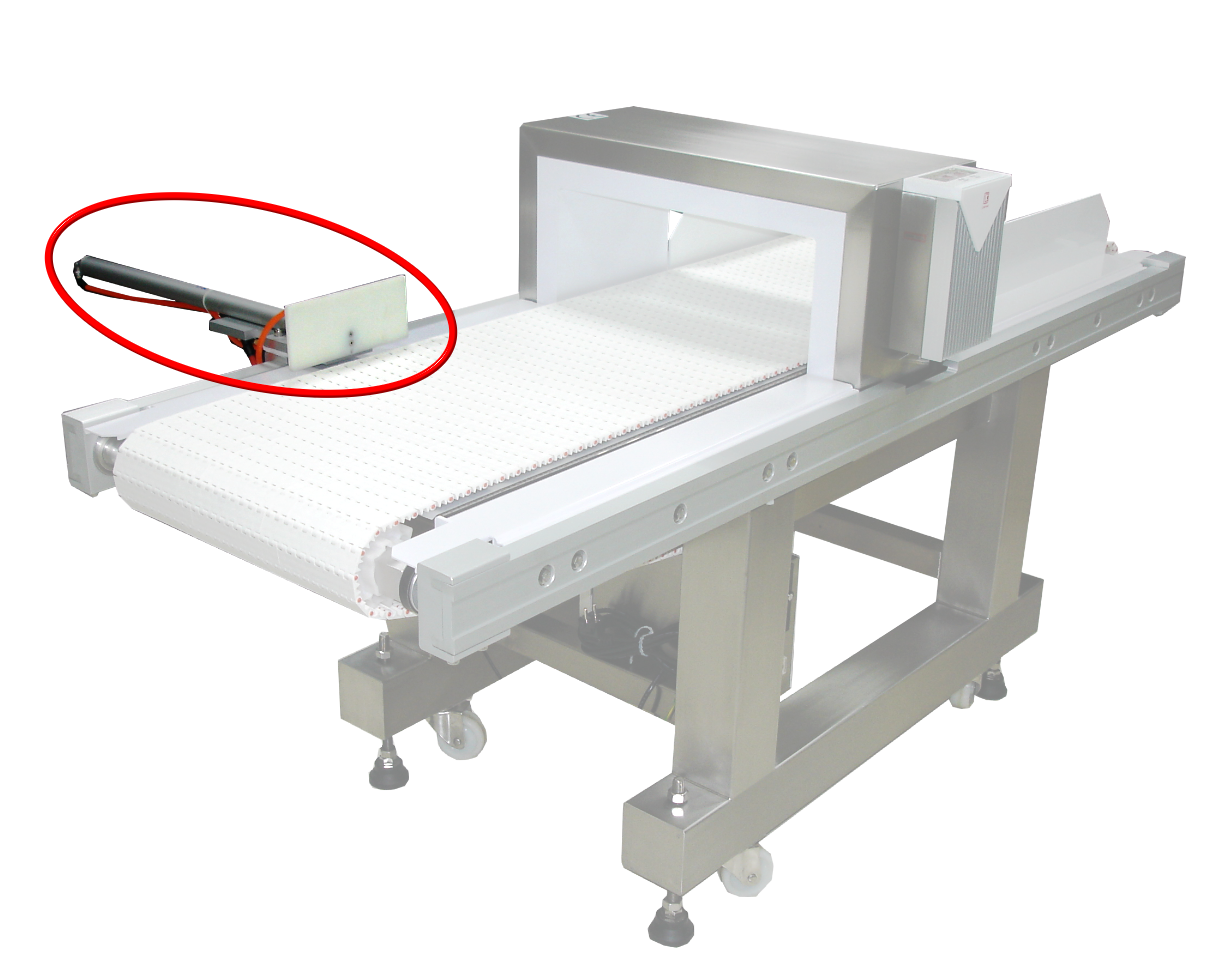

Push reject device
- Can excludes item under 20KG
- Length: 45 cm (w/o stroke)
- Stroke: 30 cm
- Contact Area: 8.5*15 cm2
- Total Weight: 3KG
- Speed: 50~700 mm/sec
- Suitable to use for LS-MB Platform
- Suitable for Large Heavy Products
- Need to be connected to an Air Compressor
- Adjustable rejection speed (Sustain and Delay)

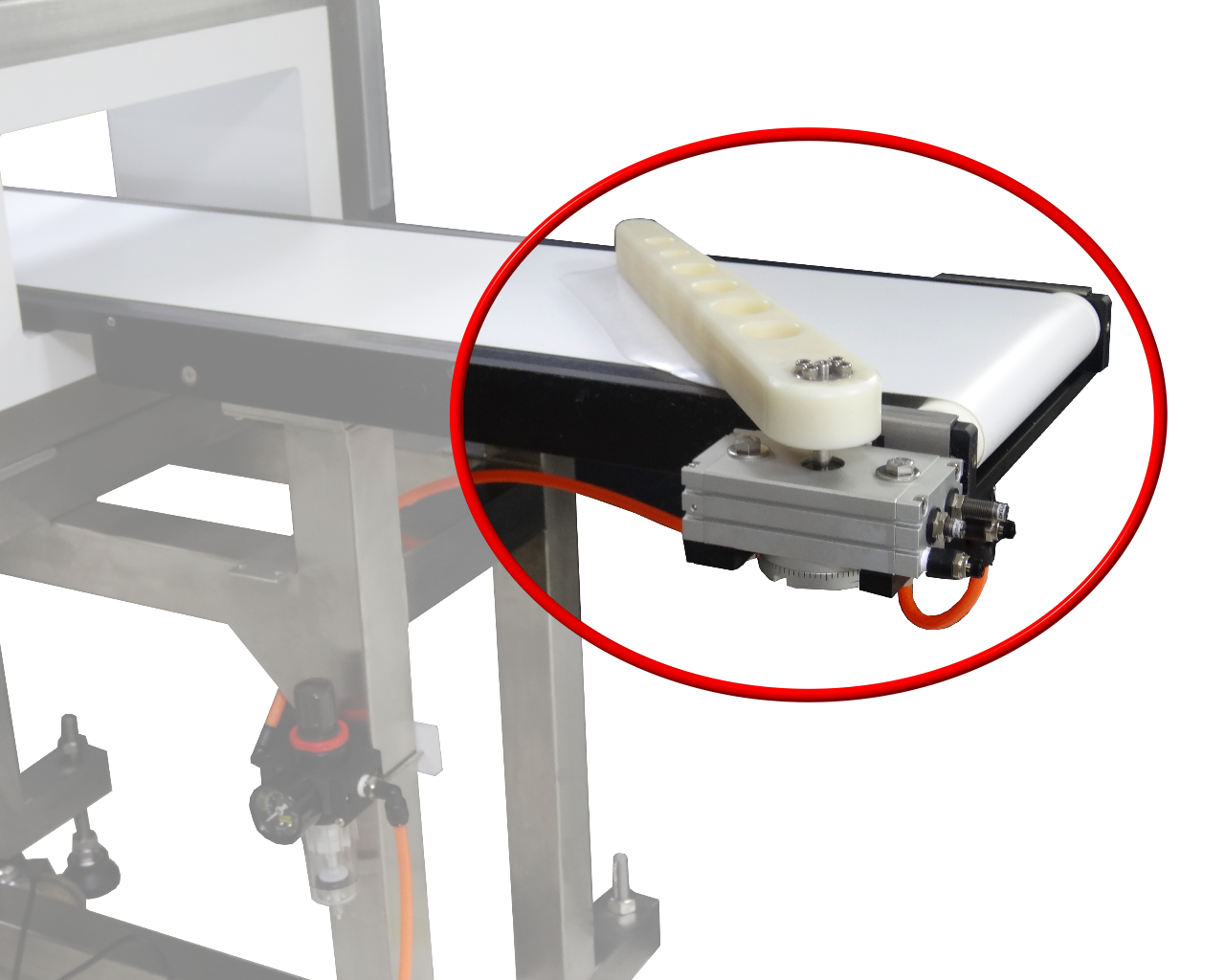

Swivel arm reject device
- Depends on the shape and packaging of the product to be tested, Products weighing 1-3 kg can be excluded.
- Nylon Arm Length: 47cm
- Total Weight: 2.8KG
- Cylinder Weight: 1.3KG
- Nylon Arm Weight: 0.8KG
- The angle can be adjusted from 0°~180°, and the exclusion device can be adjusted to 45°
- Angular velocity: 0°~360° per second
- Torque: 5-5 n.m
- Suitable to use for longer MD platform
- Use on product pack in plastic, bottle and cardboard.
- Need to be connected to an Air Compressor
- Adjustable Rejection Speed

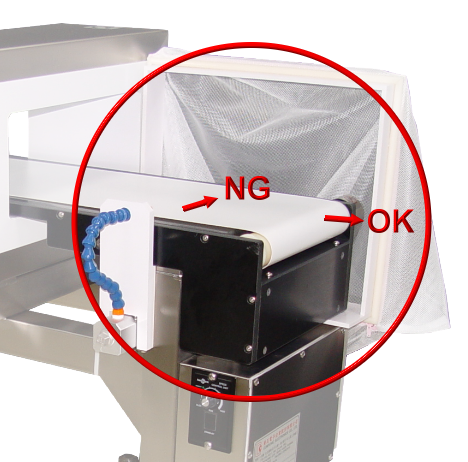

Air blast reject device
- Depends on the shape and packaging of the product to be tested, Products weighing 0.2 – 0.5 kg can be excluded.
- Length: 70cm
- Total Weight: 2KG
- Blowing Volume: 0~800 L/MIN
- Suitable for all kinds of conveying platforms
- Suitable for small packages products
- Need to be connected to an Air Compressor
- Adjustable Blowing Volume
