適用行業:

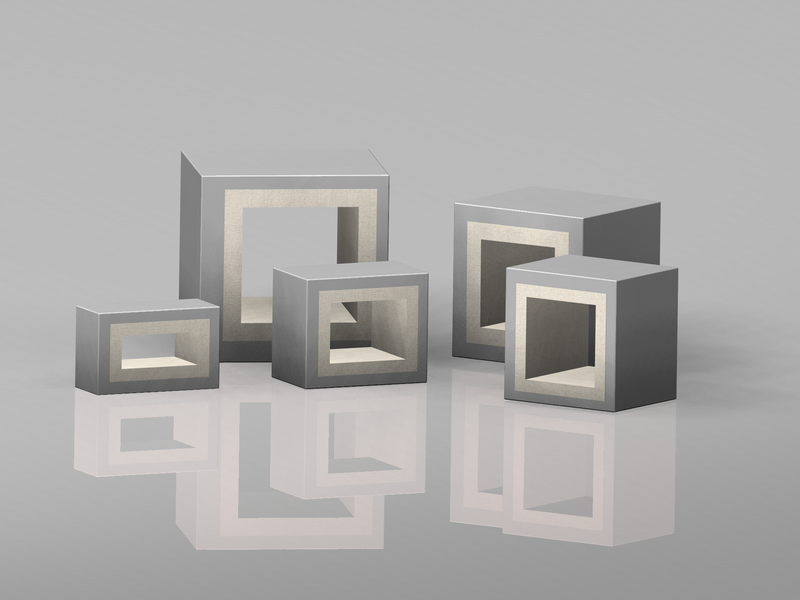

MD | 感應頭通道尺寸 | 靈敏度 | |||
---|---|---|---|---|---|
型號 | 寬 | 高 | 鐵 | 銅 | 不鏽鋼316 |
MD0606A | 6 cm | 6 cm | Ø 0.25 mm | Ø 0.3 mm | Ø 0.5 mm |
MD0903A | 9 cm | 3 cm | Ø 0.25 mm | Ø 0.4 mm | Ø 0.5 mm |

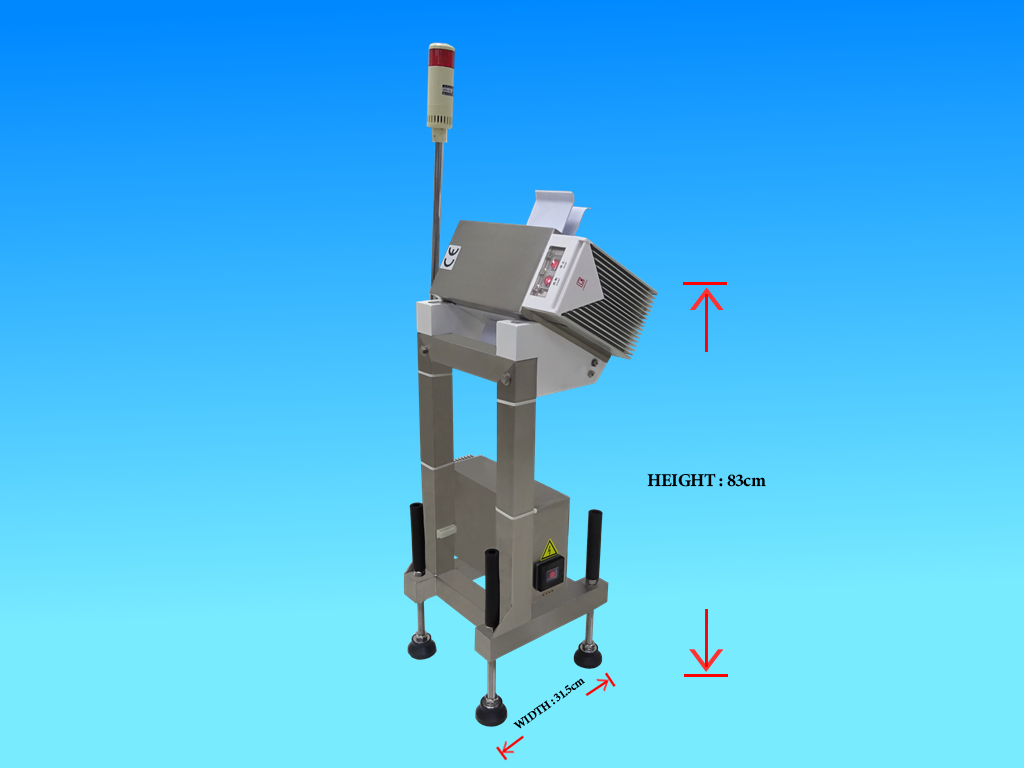

MD1203A | 12 cm | 3 cm | Ø 0.25 mm | Ø 0.4 mm | Ø 0.5 mm |

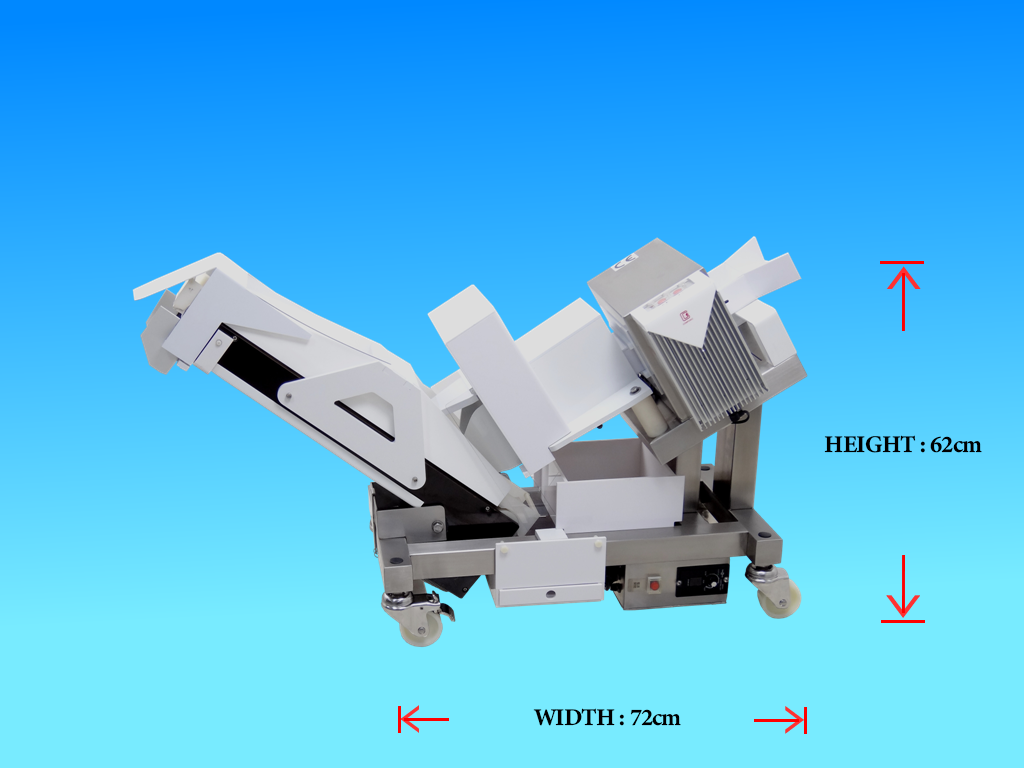

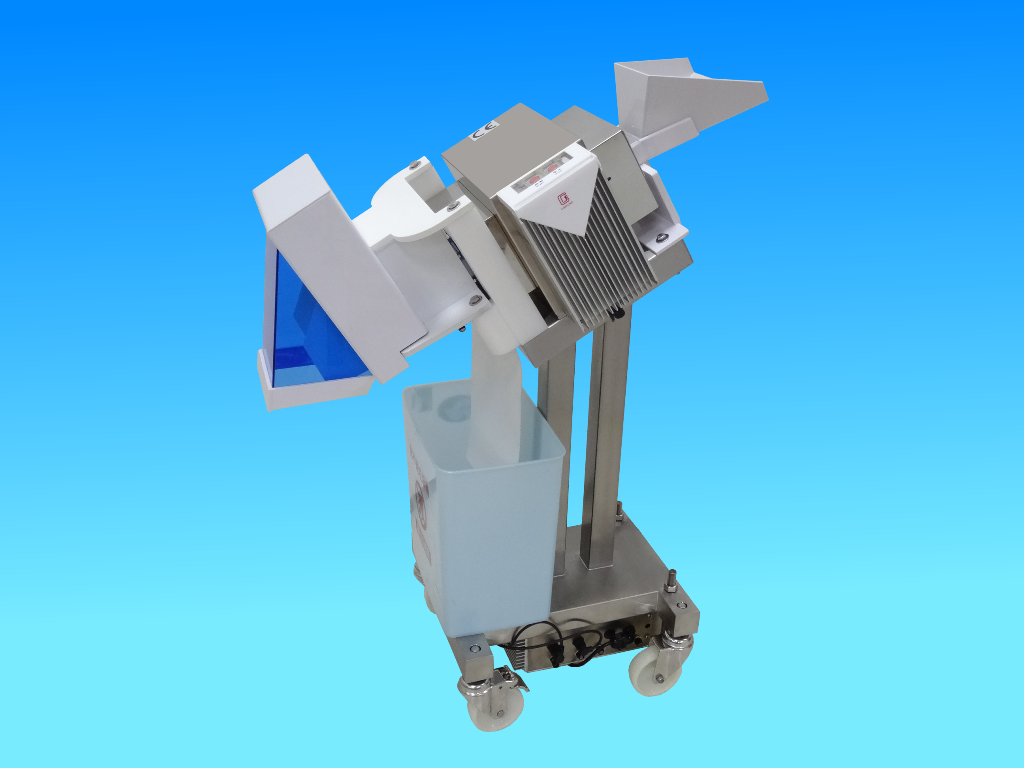

MD1206A | 12 cm | 6 cm | Ø 0.25 mm | Ø 0.4 mm | Ø 0.5 mm |

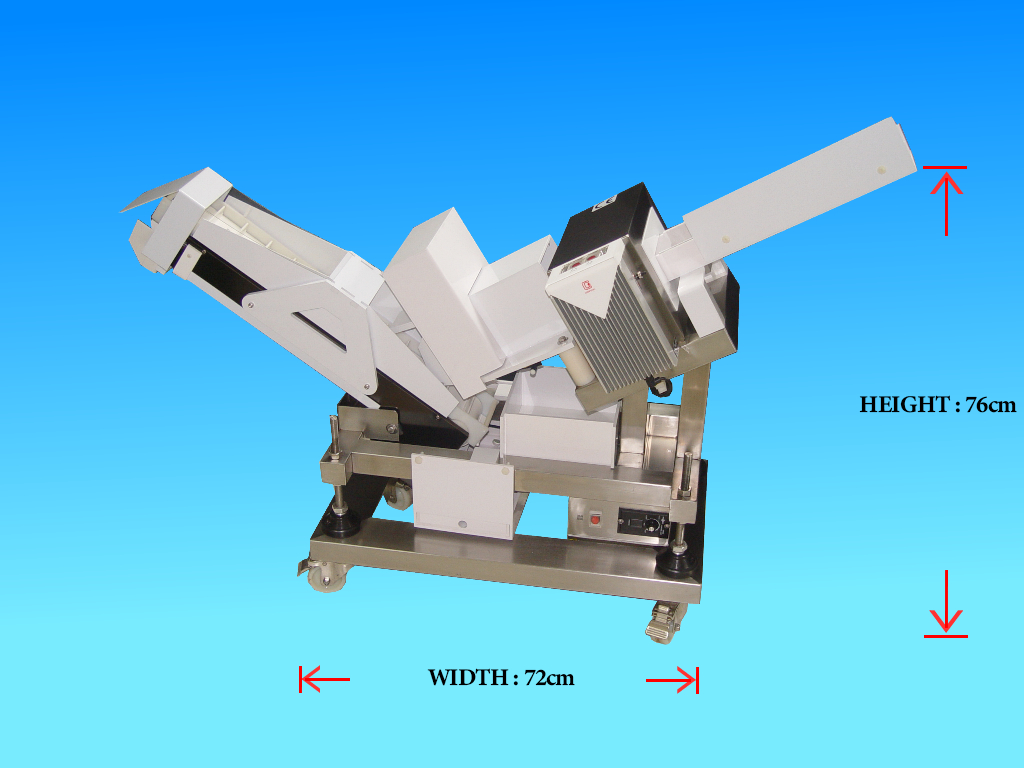

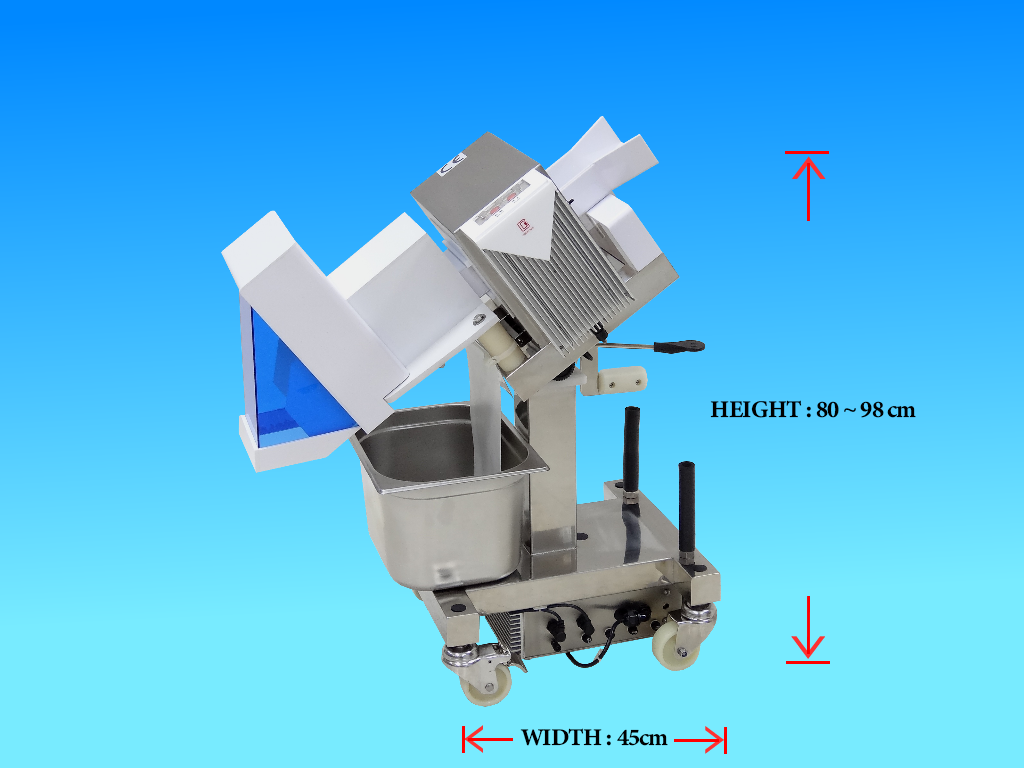

MD1206H | 12 cm | 6 cm | Ø 0.25 mm | Ø 0.4 mm | Ø 05 mm |

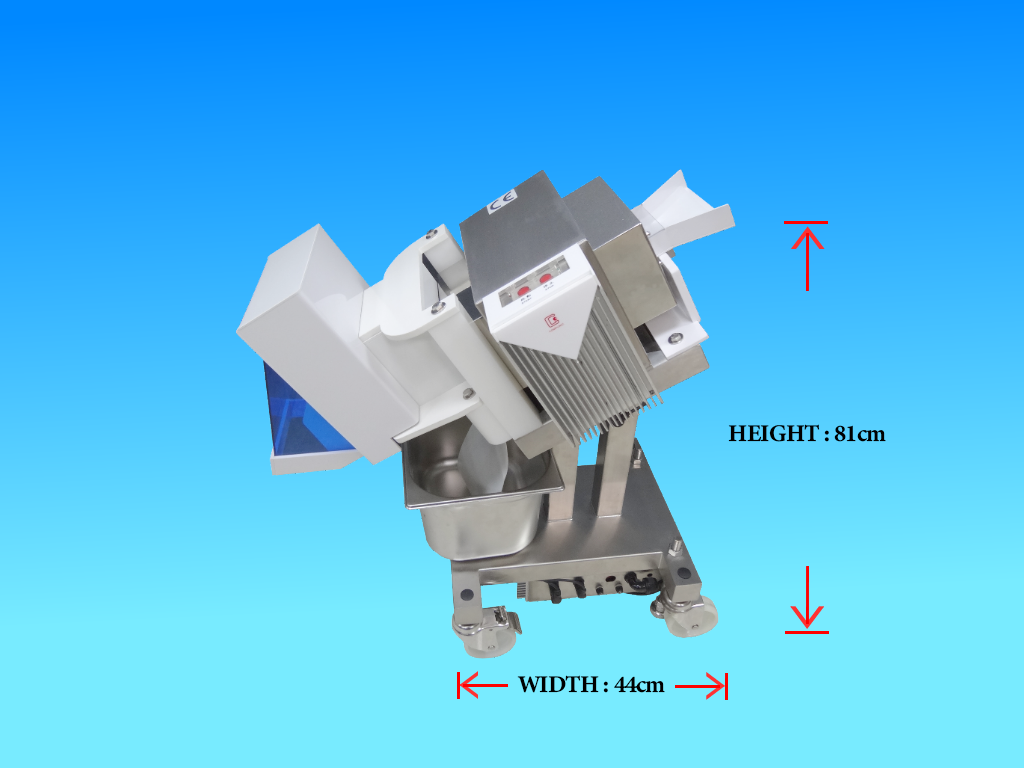

MD1206 | 12 cm | 6 cm | Ø 0.5 mm | Ø 0.4 mm | Ø 1.0 mm |

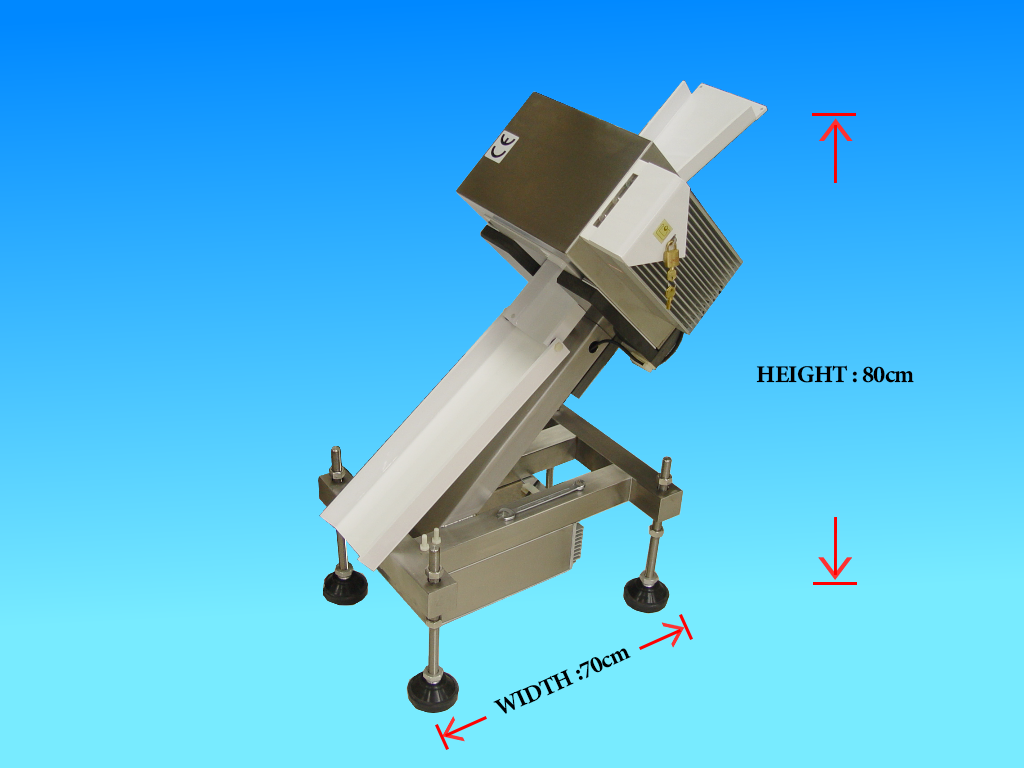

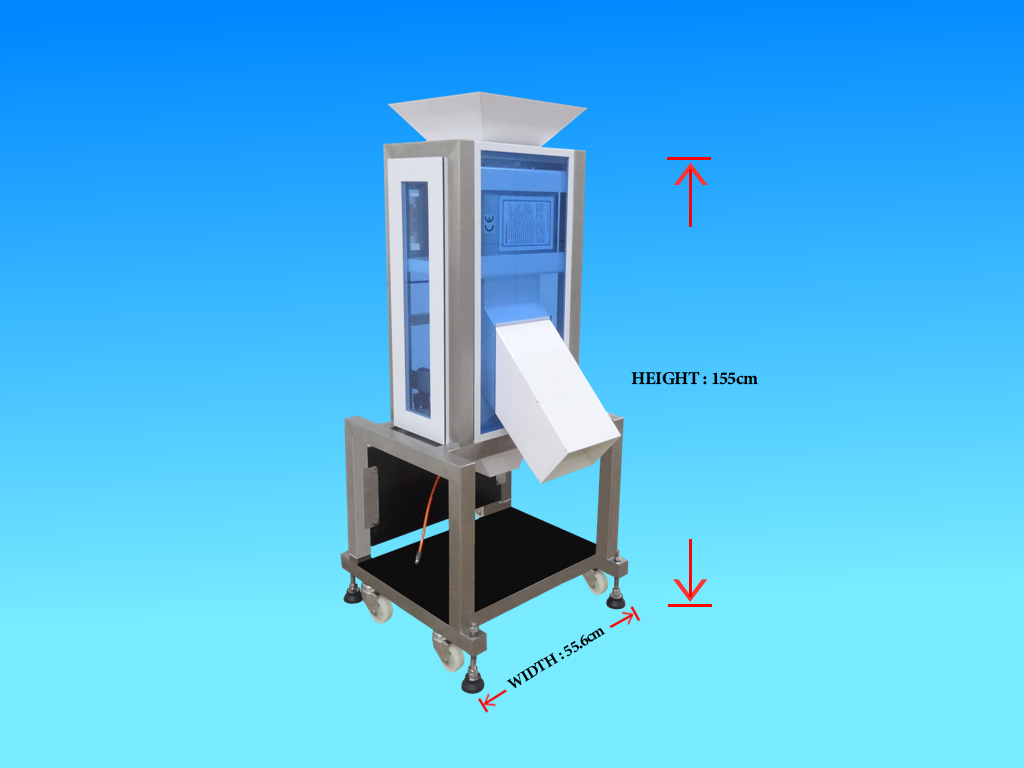

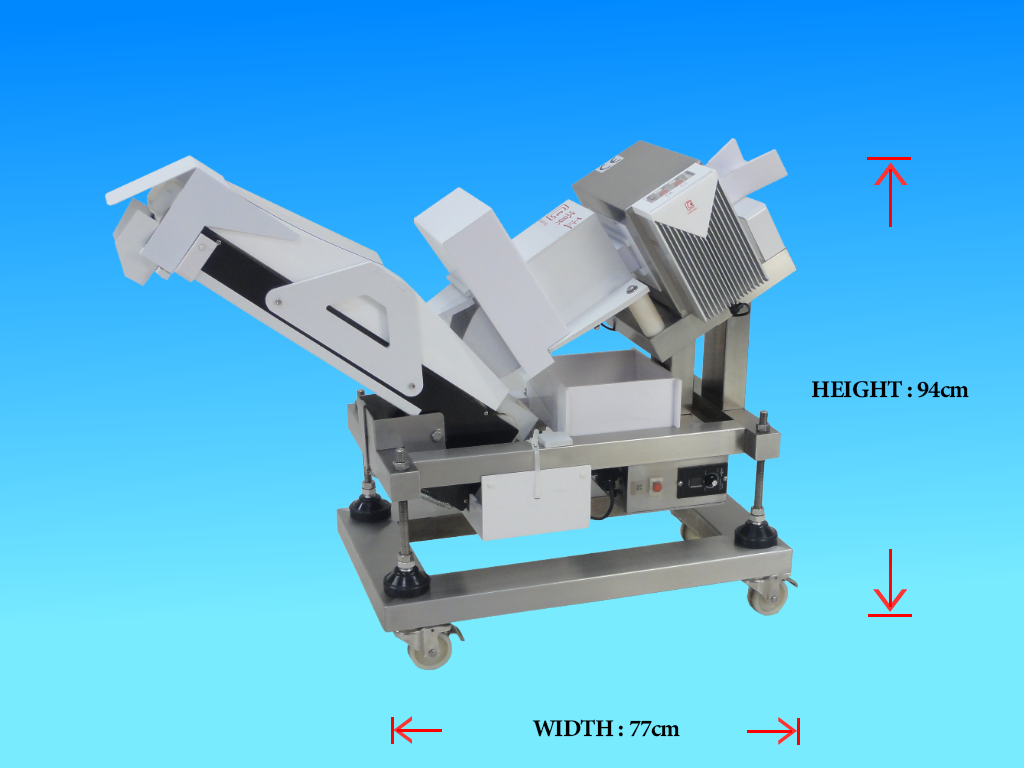

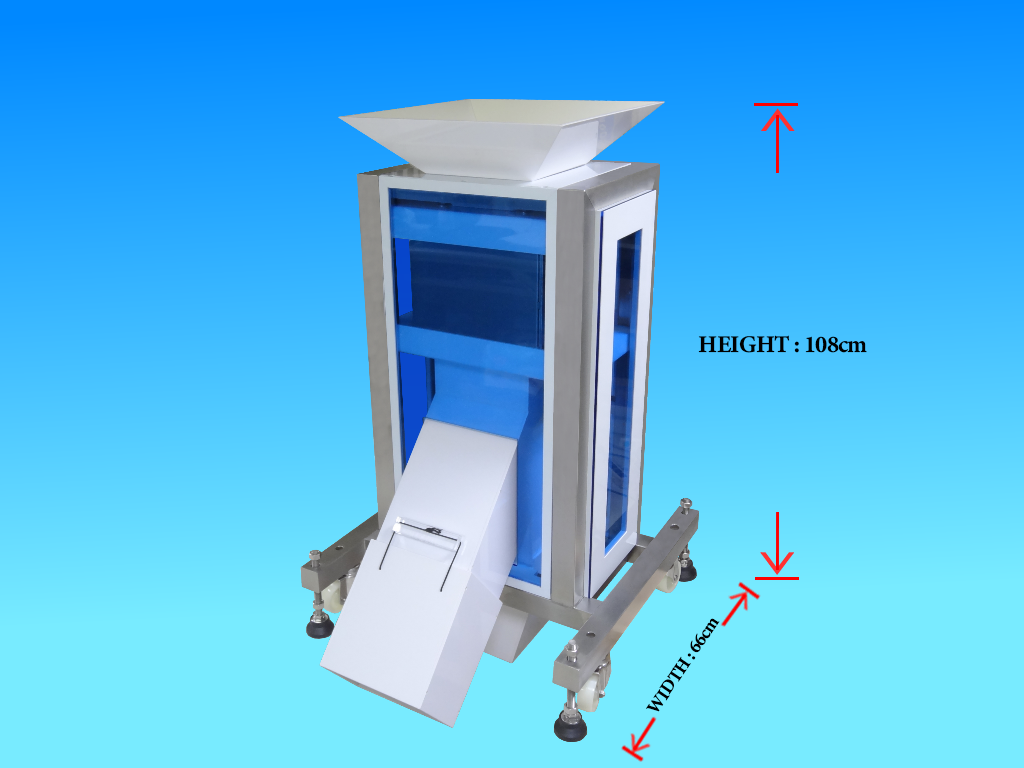

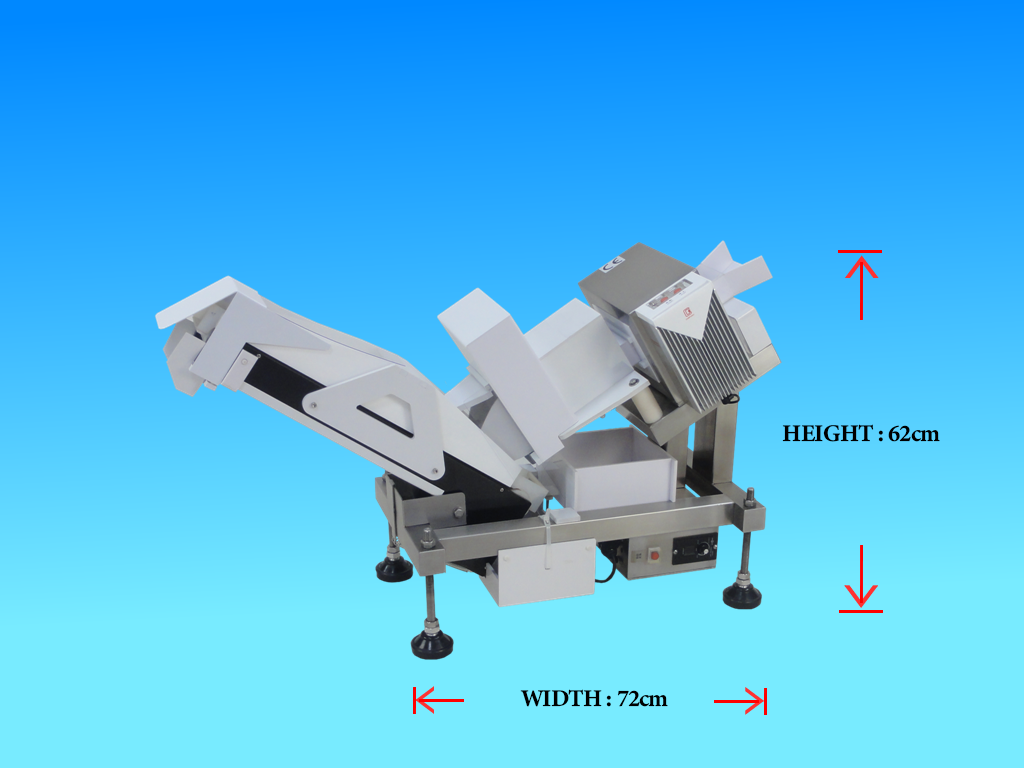

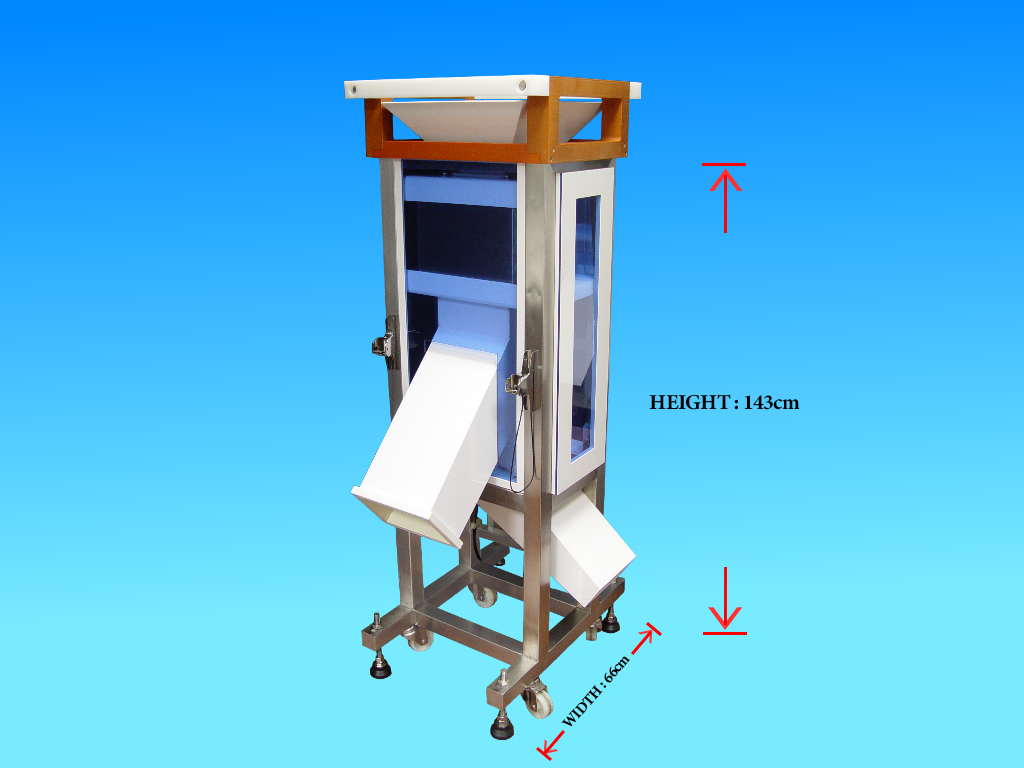

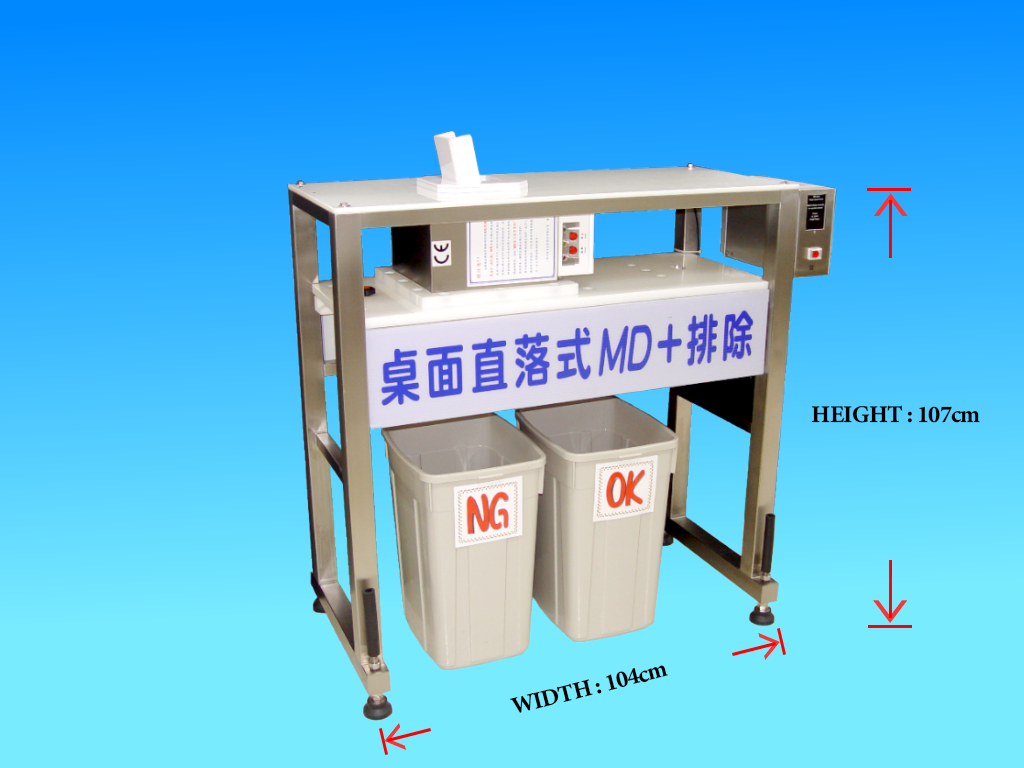

MD1212A | 12 cm | 12 cm | Ø 0.6 mm | Ø 0.9 mm | Ø 1.2 mm |

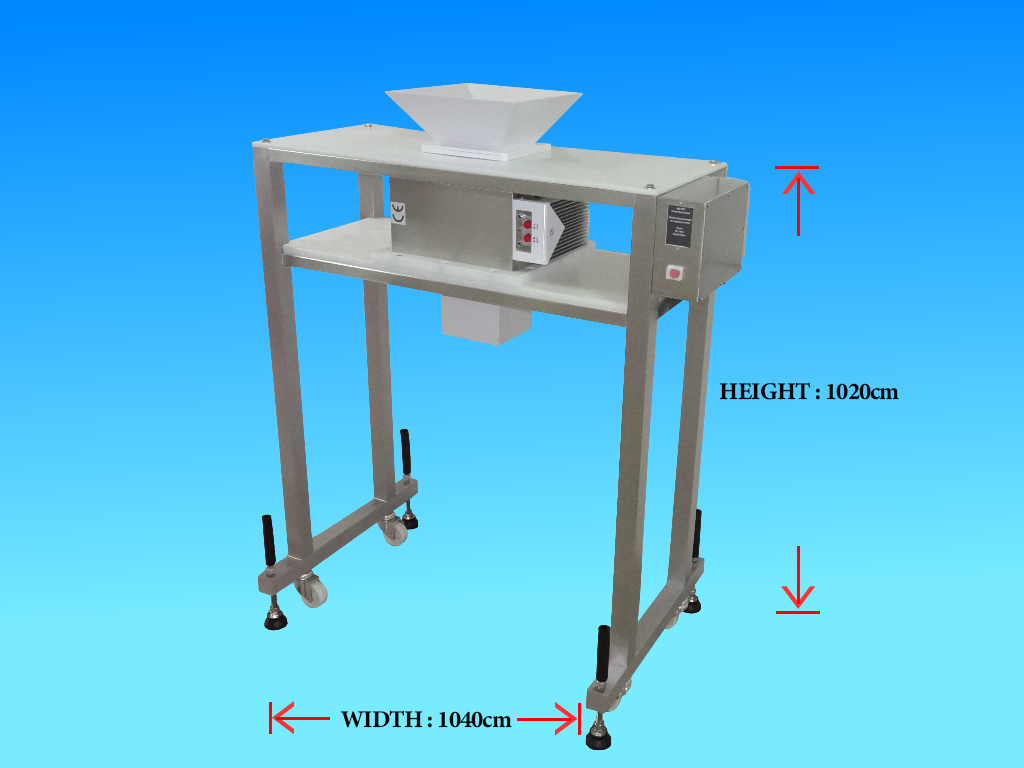

MD1717A | 17 cm | 17 cm | Ø 0.7 mm | Ø 1.0 mm | Ø 1.2 mm |
MD1425 | 14 cm | 25 cm | Ø 0.7 mm | Ø 1.0 mm | Ø 1.5 mm |
MD1432 | 14 cm | 32 cm | Ø 0.8 mm | Ø 1.2 mm | Ø 1.8 mm |
MD2514 | 25 cm | 14 cm | Ø 0.7 mm | Ø 1.0 mm | Ø 1.5 mm |
MD2525 | 25 cm | 25 cm | Ø 0.8 mm | Ø 1.2 mm | Ø 1.8 mm |

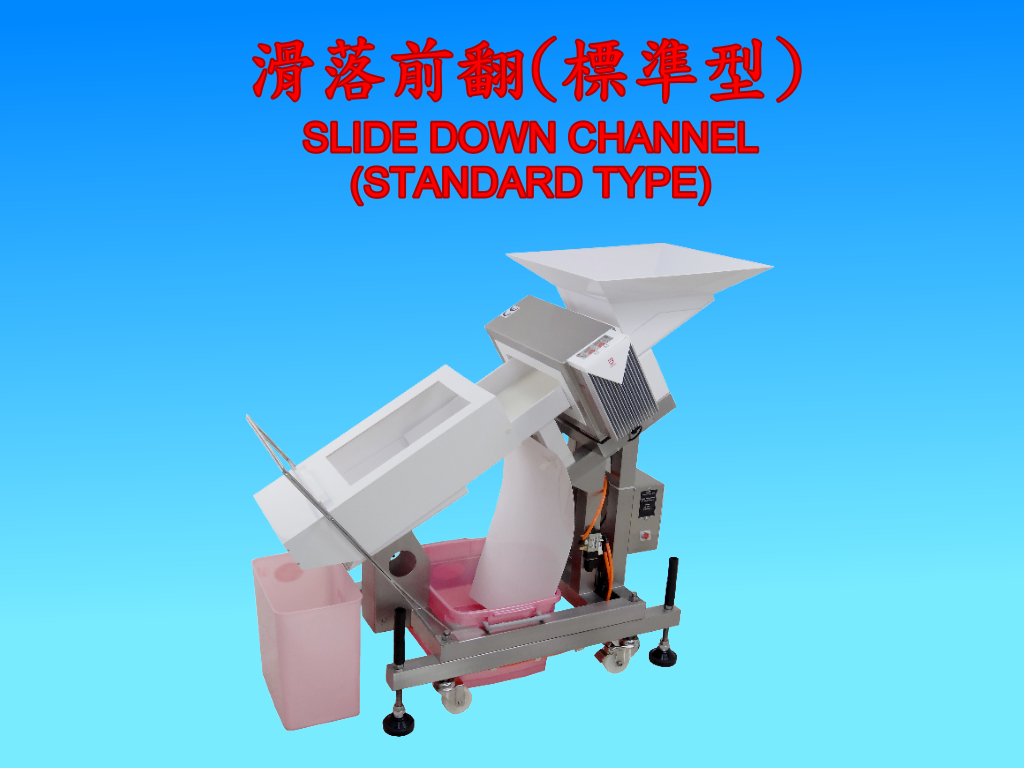

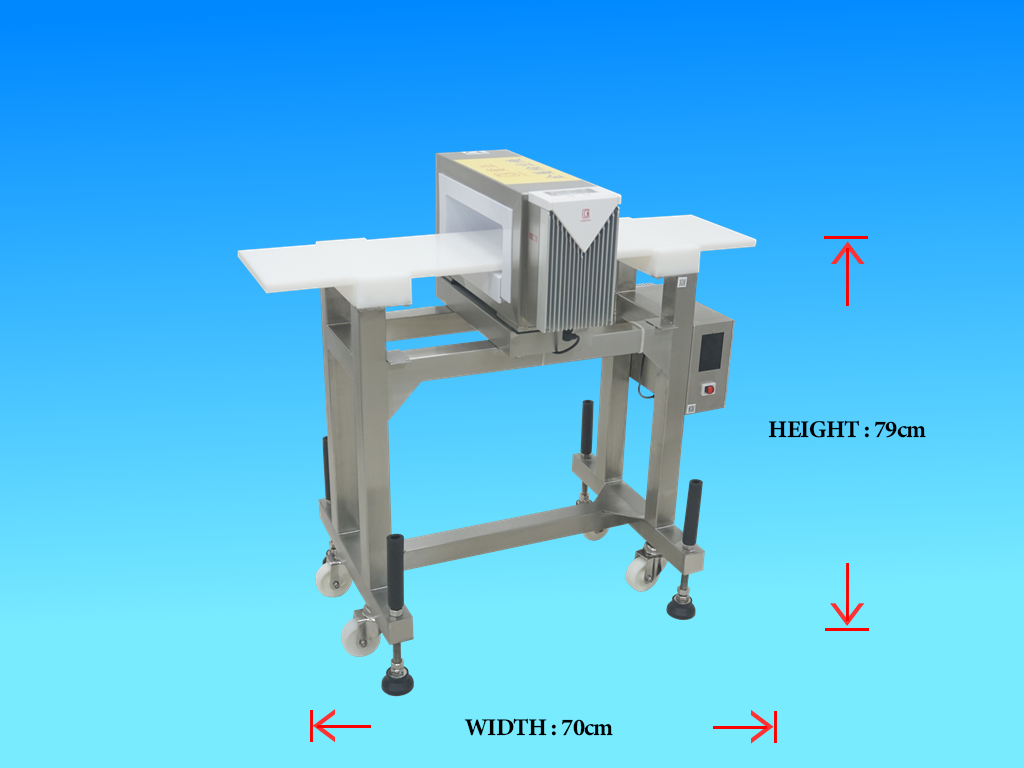

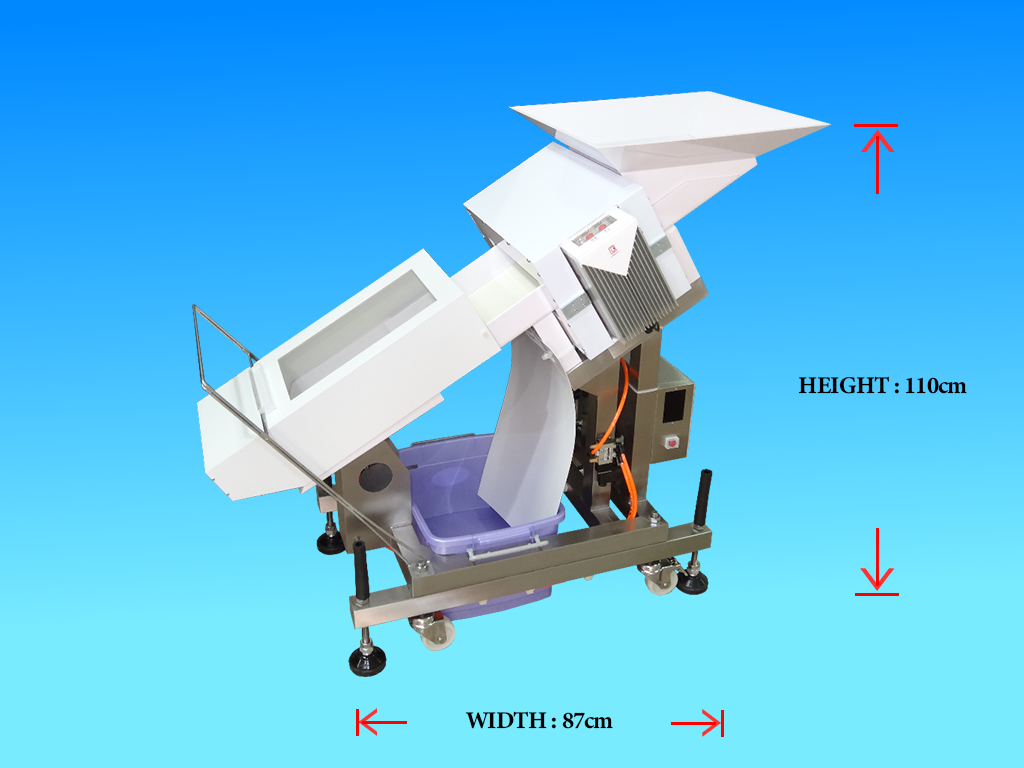

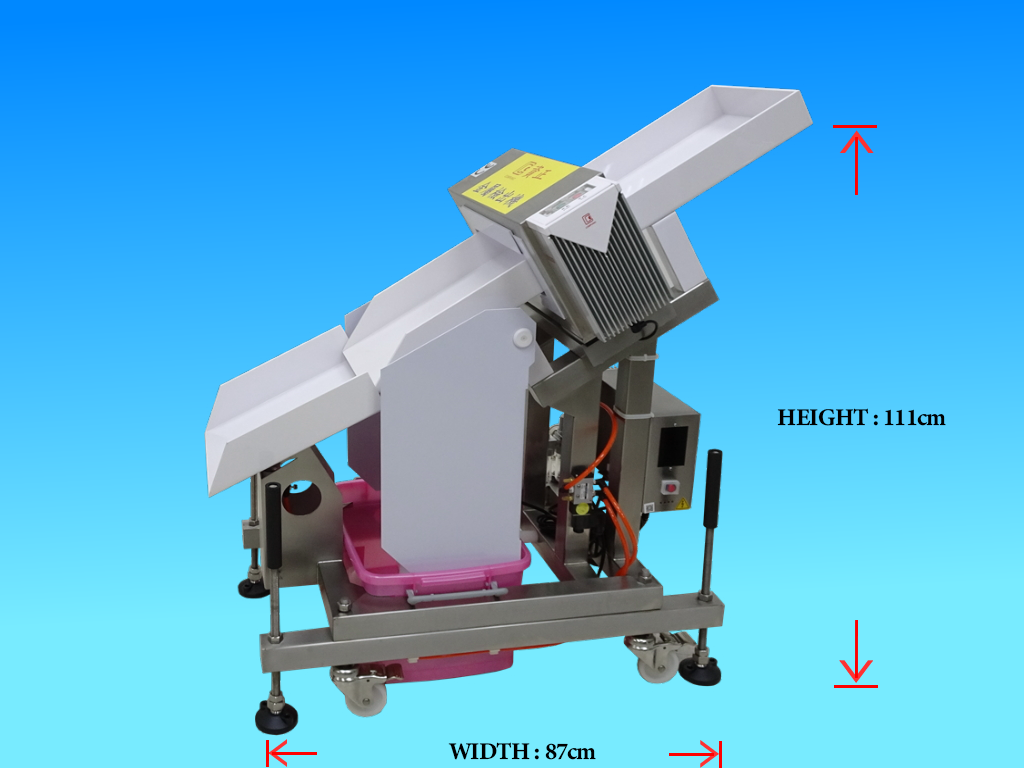

MD3010 | 30 cm | 10 cm | Ø 0.7 mm | Ø 1.0 mm | Ø 1.5 mm |

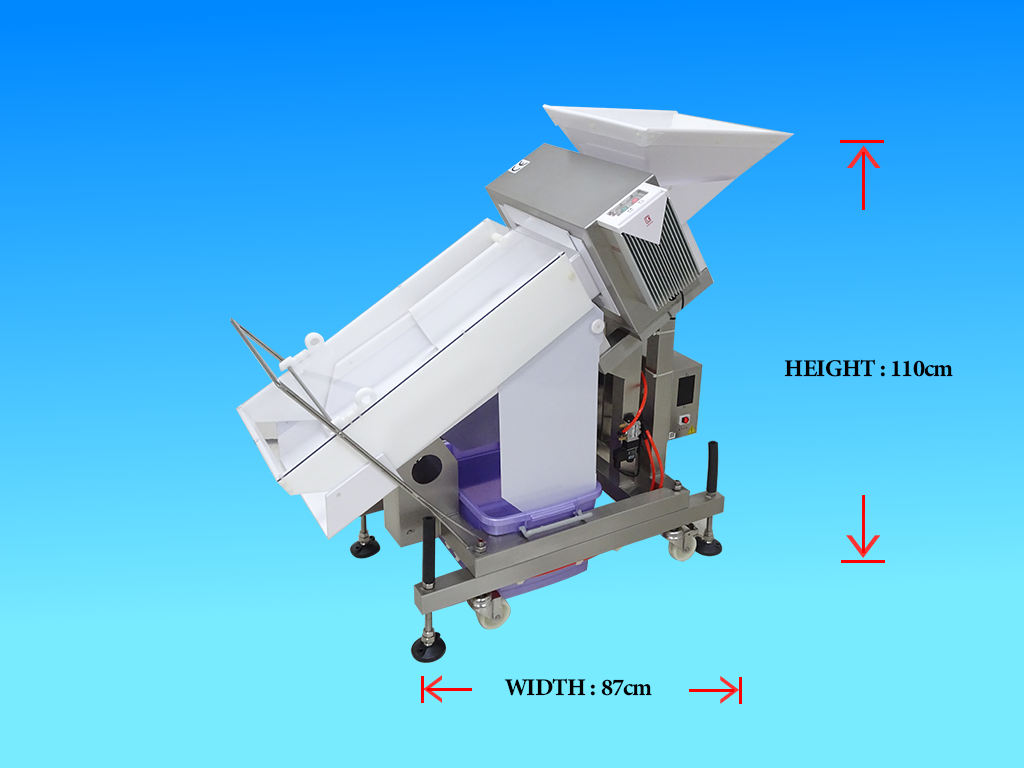

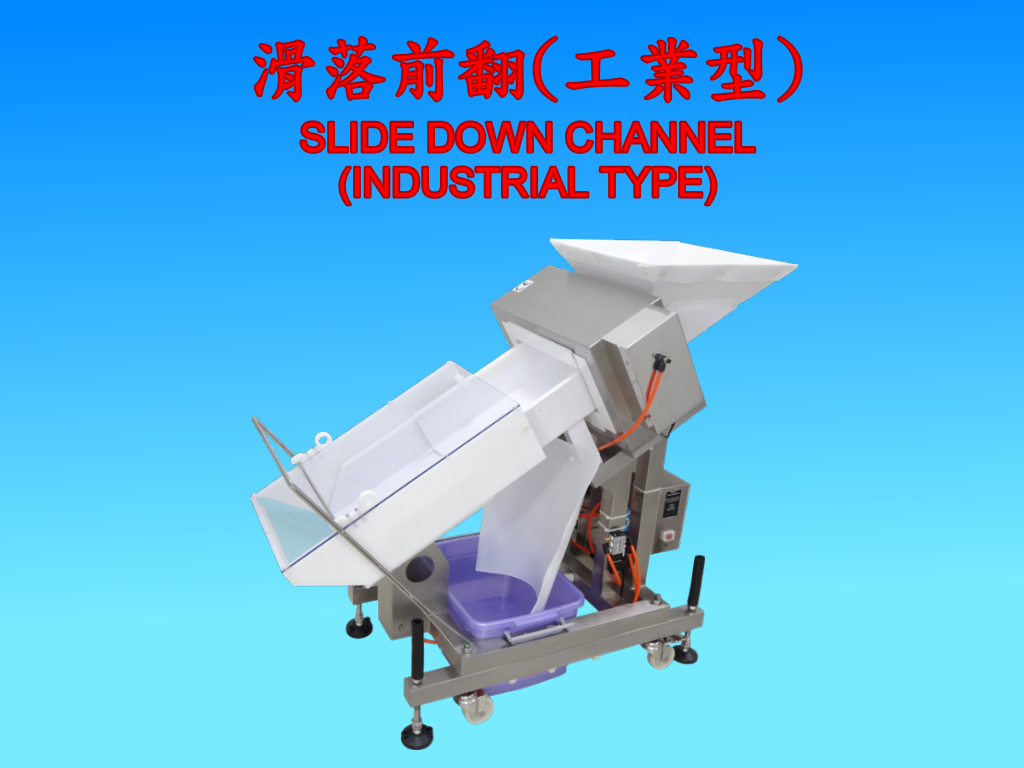

MD3214 | 32 cm | 14 cm | Ø 0.7 mm | Ø 1.0 mm | Ø 1.6 mm |
MD3217 | 32 cm | 17 cm | Ø 0.8 mm | Ø 1.5 mm | Ø 1.8 mm |
MD3220 | 32 cm | 20 cm | Ø 1.0 mm | Ø 1.5 mm | Ø 2.0 mm |
MD3232 | 32 cm | 32 cm | Ø 1.2 mm | Ø 2.0 mm | Ø 2.5 mm |
MD4510 | 45 cm | 10 cm | Ø 0.7 mm | Ø 1.2 mm | Ø 1.5 mm |
MD4514 | 45 cm | 14 cm | Ø 0.8 mm | Ø 1.5 mm | Ø 1.8 mm |
MD4517 | 45 cm | 17 cm | Ø 1.0 mm | Ø 1.5 mm | Ø 2.0 mm |
MD4520 | 45 cm | 20 cm | Ø 1.2 mm | Ø 1.8 mm | Ø 2.38 mm |
MD4527 | 45 cm | 27 cm | Ø 1.5 mm | Ø 2.5 mm | Ø 3.0 mm |
MD4532 | 45 cm | 32 cm | Ø 1.8 mm | Ø 3.0 mm | Ø 3.5 mm |

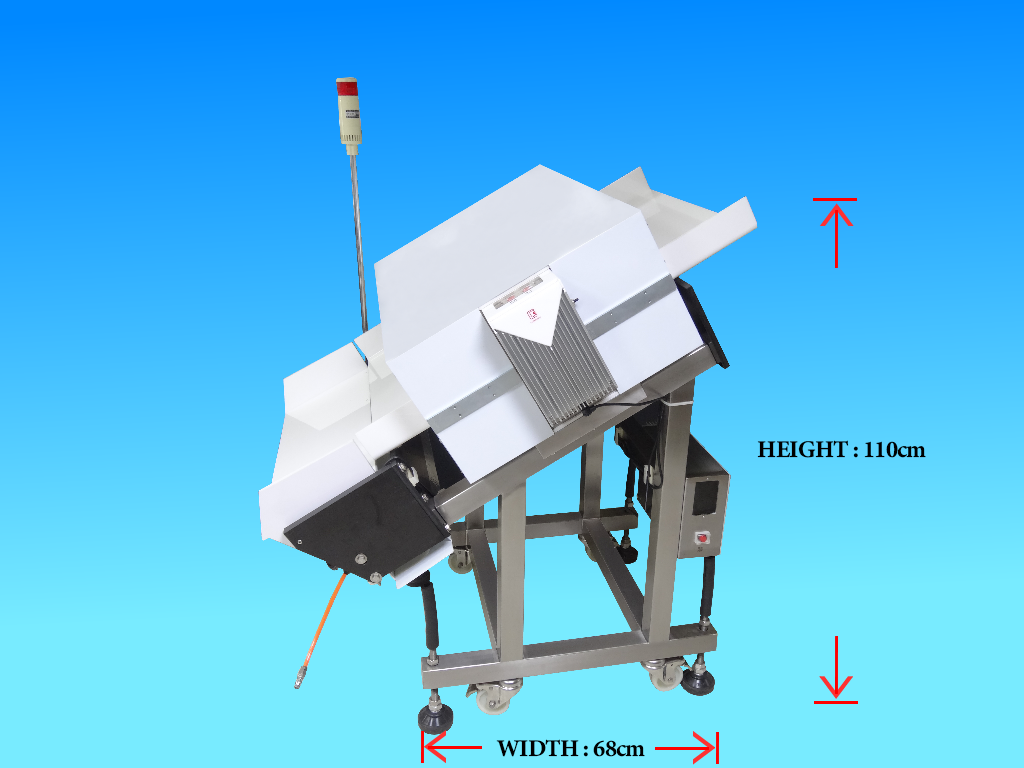

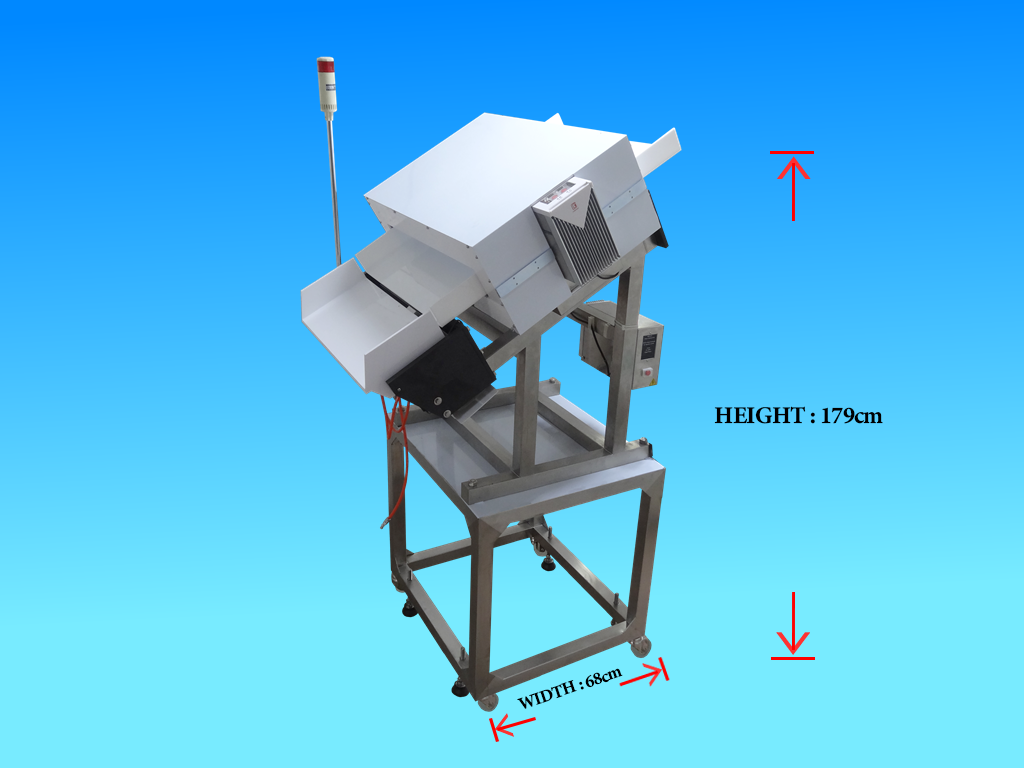

MD6210 | 62 cm | 10 cm | Ø 0.8 mm | Ø 1.2 mm | Ø 1.8 mm |
MD6214 | 62 cm | 14 cm | Ø 1.0 mm | Ø 1.8 mm | Ø 2.38 mm |
MD6217 | 62 cm | 17 cm | Ø 1.5 mm | Ø 2.0 mm | Ø 3.0 mm |
MD6220 | 62 cm | 20 cm | Ø 1.8 mm | Ø 2.5 mm | Ø 3.5 mm |
MD6232 | 62 cm | 32 cm | Ø 2.5 mm | Ø 3.5 mm | Ø 4.0 mm |
MD10010 | 100 cm | 10 cm | Ø 1.5 mm | Ø 2.0 mm | Ø 3.0 mm |
